High Temp Tape, 4 Pack Polyimide High Temperature Resistant Tape
High Temp Tape, 4 Pack Polyimide High Temperature Resistant Tape
Couldn't load pickup availability
- Secure Checkout
- Easy Returns
- Shipping Info
Product Details +
Product description
ELEGOO 4-Pack Polyimide High-Temperature Tape are made from polyimide film with silicone adhesive. They are compatible with a wide temperature range as low as -73 °C (-99 °F) and as high as 260 °C (500 °F).
For applications where extremes of heat and vibration are the norm, designers rely on it because of its ability to maintain its unique combination of mechanical properties under the harshest of conditions.
Applications:
- Automotive sensor and manifolds

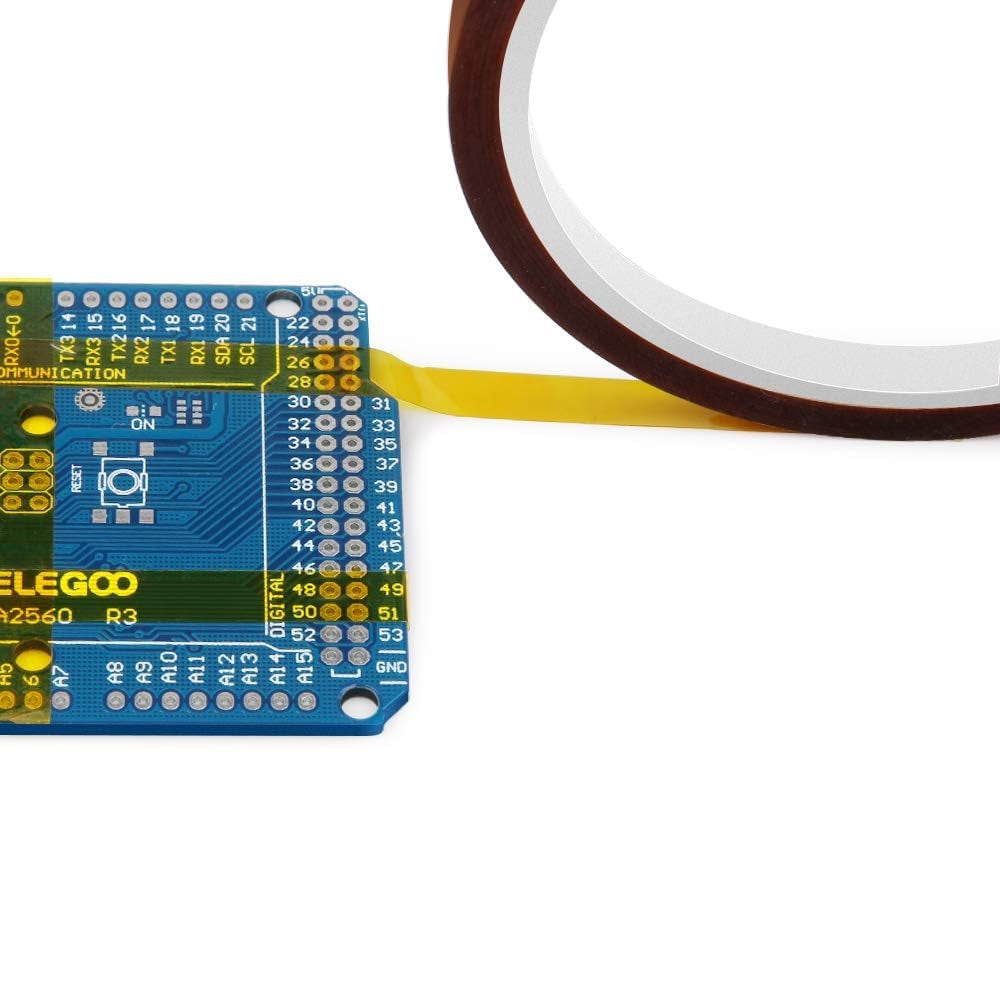

- Insulating circuit boards
- Etching
- Fiber Optics Cable
- High temperature powder coating
- Semiconductor manufacturing
- Wave soldering during circuit board assembly
- 3D Printing
ELEGOO Polyimide High Temperature Resistant Tape (4 Rolls × 108 ft, 432 ft Total)
Specification:
- Backing Material: Polyimide Polymers Film
- Adhesive Type: Silicone
- Substrate Material Thickness: 0.025 mm
- Thickness with Adhesive: 0.05 mm
- Adhesive Strength: 4.5 N/ 25 mm
- Tensile Strength: 135 N/ 25 mm
- Elongation: 35 %
- Temperature Range:-73°C – 260°C (-99°F - 500°F)

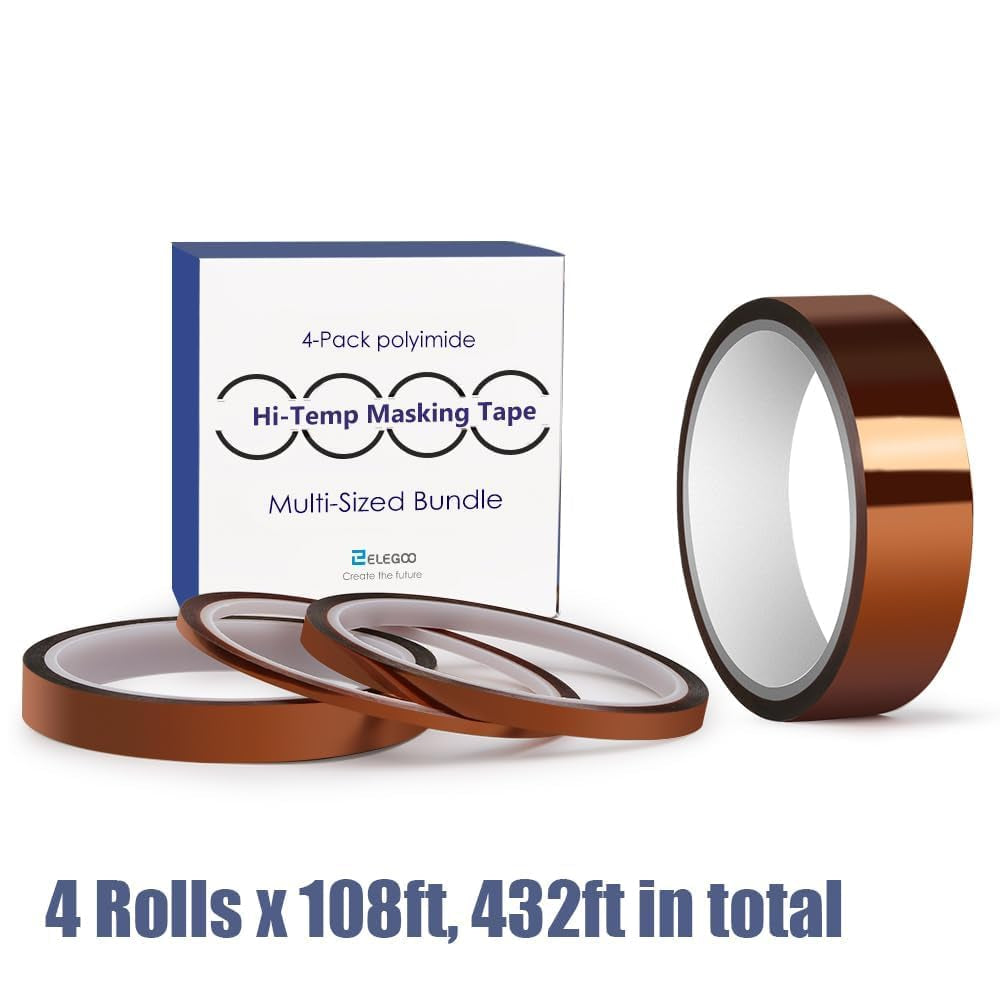

- Length: 108 feet for each roll, 432 feet in total

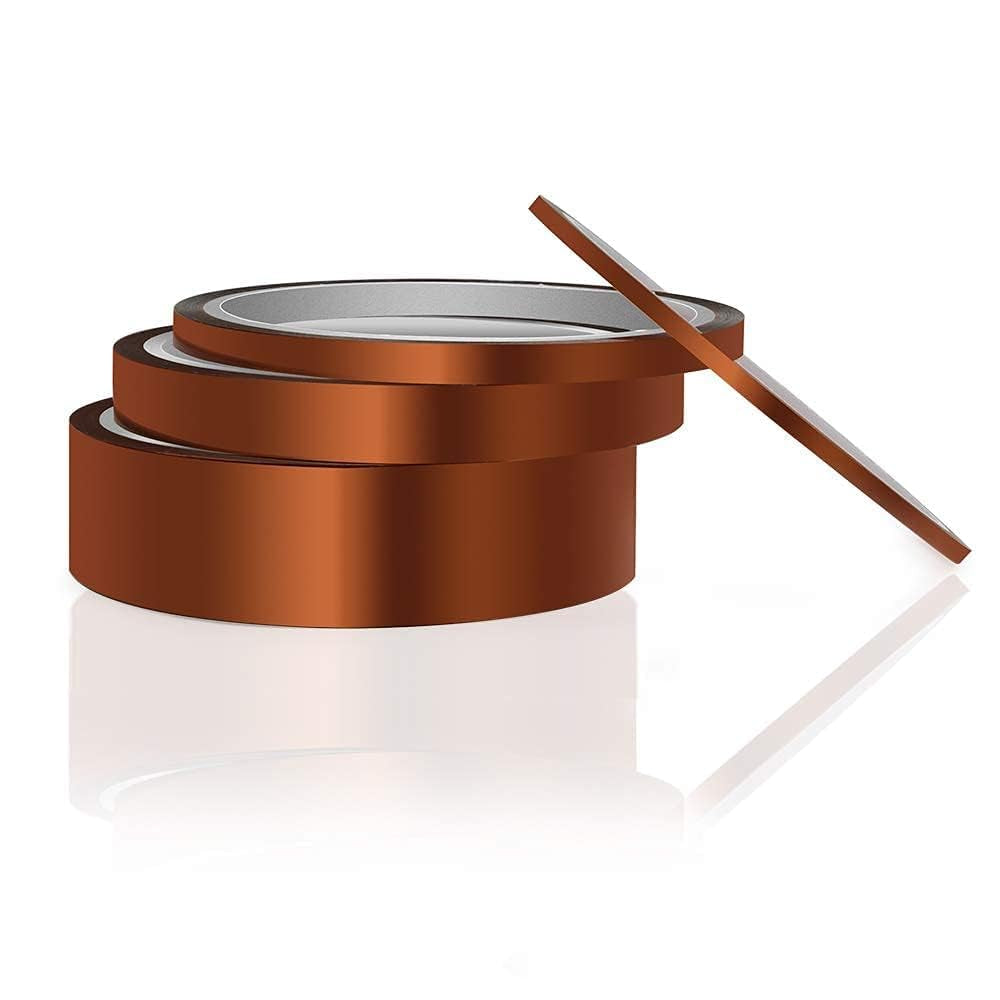

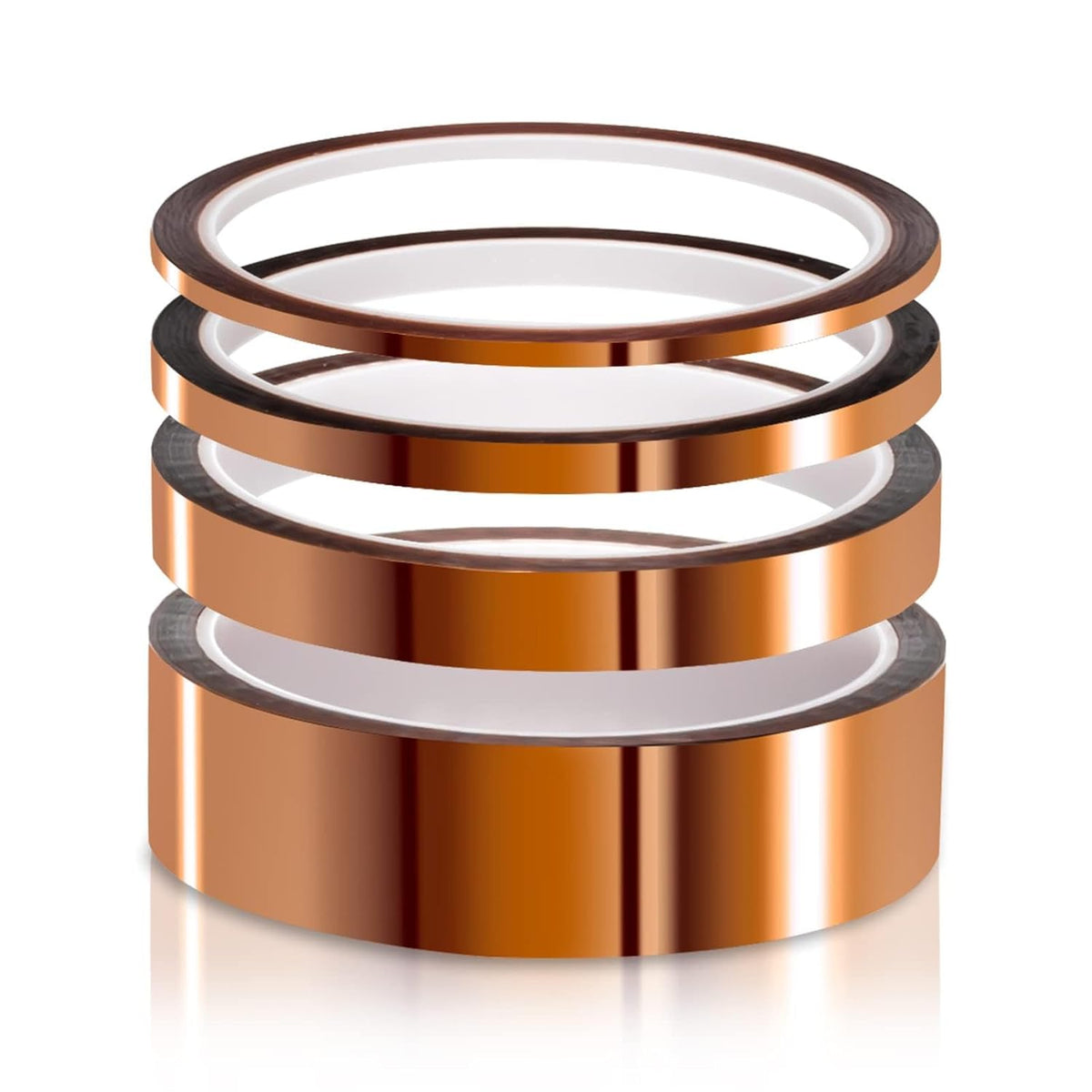

Assortment of 4 Sizes High Temp Tape
Multi-sized high temp tape makes it much easier to wrap sensitive things. No need for doubling up on narrow tape or trimming tape that is too wide. Just grab the right size roll and go.
Silicone Adhesive for Clean Removal
The silicone adhesive is designed to hold during temporary high-temperature masking and release cleanly from compatible surfaces after use
Heat-Resistant Polyimide Film
Polyimide film helps shield nearby components and surfaces during soldering and hot-air rework
Wide Range of Applications
From insulating circuit boards to high-temperature powder coating, you can use ELEGOO high temp tape in all your projects that involve high-temperature environments

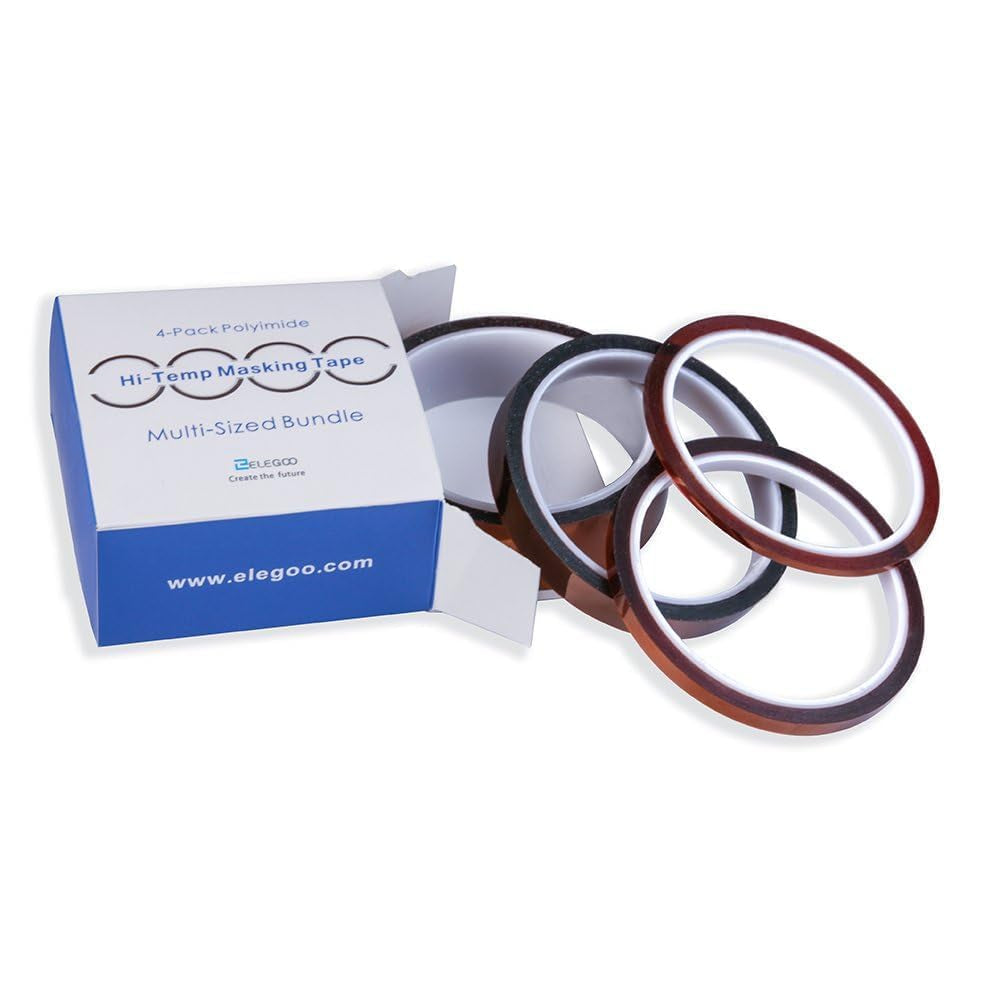

Package List

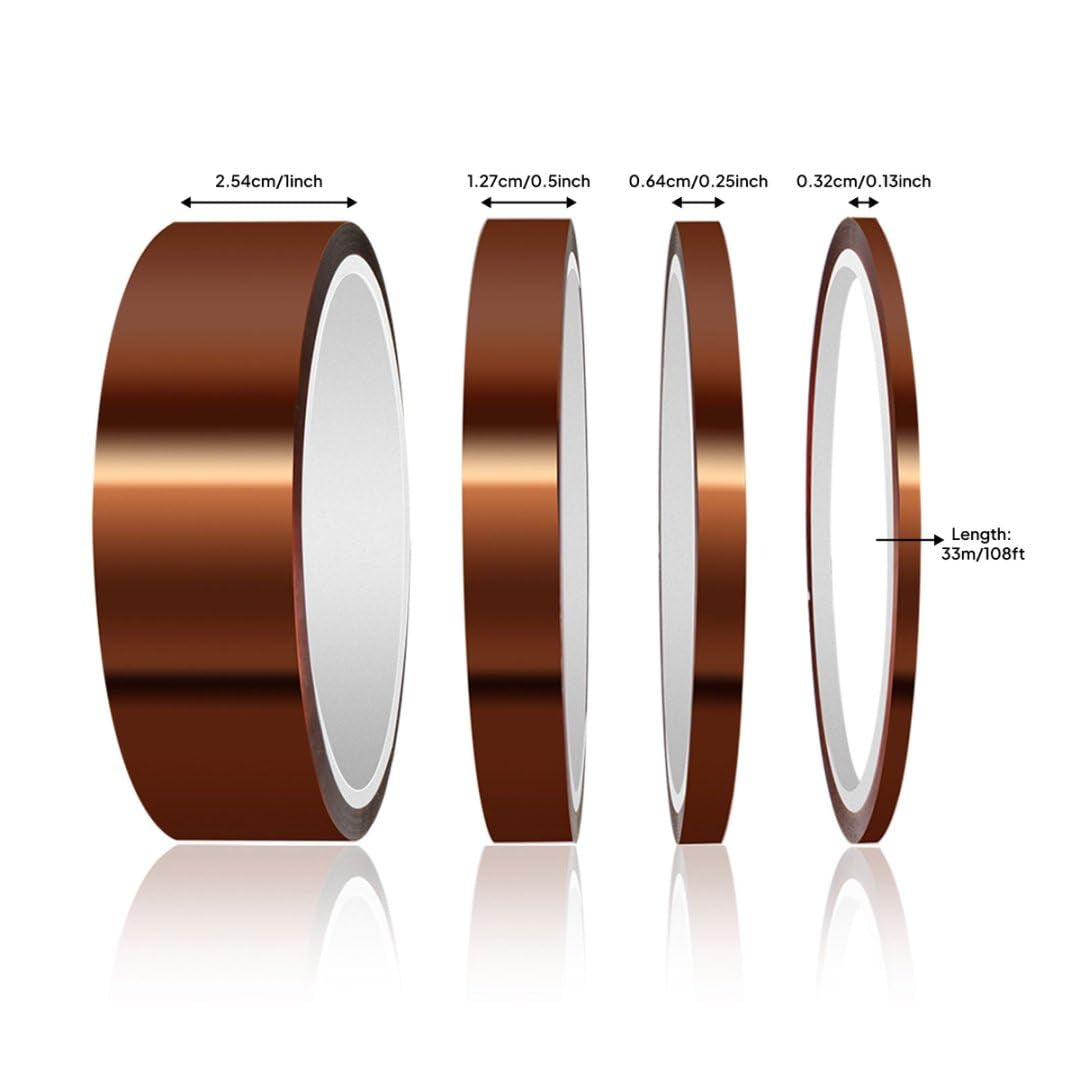

- 1/8 inch high temp tape with 108 feet
- 1/4 inch high temp tape with 108 feet
- 1/2 inch high temp tape with 108 feet
- 1 inch high temp tape with 108 feet
| Customer Reviews | 4.5 out of 5 stars 311 | 4.5 out of 5 stars 4,482 | 4.7 out of 5 stars 7,995 | 4.7 out of 5 stars 3,476 | 4.7 out of 5 stars 16,591 | 4.7 out of 5 stars 2,547 |
|---|---|---|---|---|---|---|
| Price | $84.99$84.99 | $65.99$65.99 | $55.99$55.99 | $59.99$59.99 | $39.99$39.99 | $36.99$36.99 |
| Controller Board | NANO | UNO R3 | MEGA 2560 | UNO R3 | UNO R3 | Not Included |
| Compatibility with Arduino | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Projects Tutorial Included | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Assembly Requirement | ✓ | ✓ | No | No | No | No |
| Reasons to Buy | ElegooKit App; Obstacle Avoidance; Line Tracking Mode | ElegooKit App; FPV Mode; Obstacle Avoidance; Line Tracking Mode | Tutorial of 33 Projects, Powerful Mega R3 Control Board | Tutorial of 33 Projects, Complete Stater Kit with UNO R3 | Tutorial of 24 Projects, Cost-effetive Starter Kit | Tutorial of 34 Projects, Updated Version, Compatibility with Arduino IDE and STM32 |
- Four Full Rolls, Four Useful Widths: Choose 1/8, 1/4, 1/2 or 1 in for fine component masking, wire organization or broader surface coverage; each roll is 108 ft long, giving electronics benches, repair workstations and maker spaces 432 ft in total
- HN Polyimide Polymers Film For High-Heat Work: The 0.05 mm total tape thickness is rated from -73°C to 260°C for temporary masking and insulation around soldering, hot-air rework, wave soldering, powder coating and other controlled heat-exposure tasks
- Silicone Adhesive Balances Hold & Release: Apply the tape to a clean, dry, smooth surface and press firmly for full contact; the silicone adhesive is designed to hold during temporary masking and release cleanly after the work cools, while delicate or painted finishes should be spot-tested first

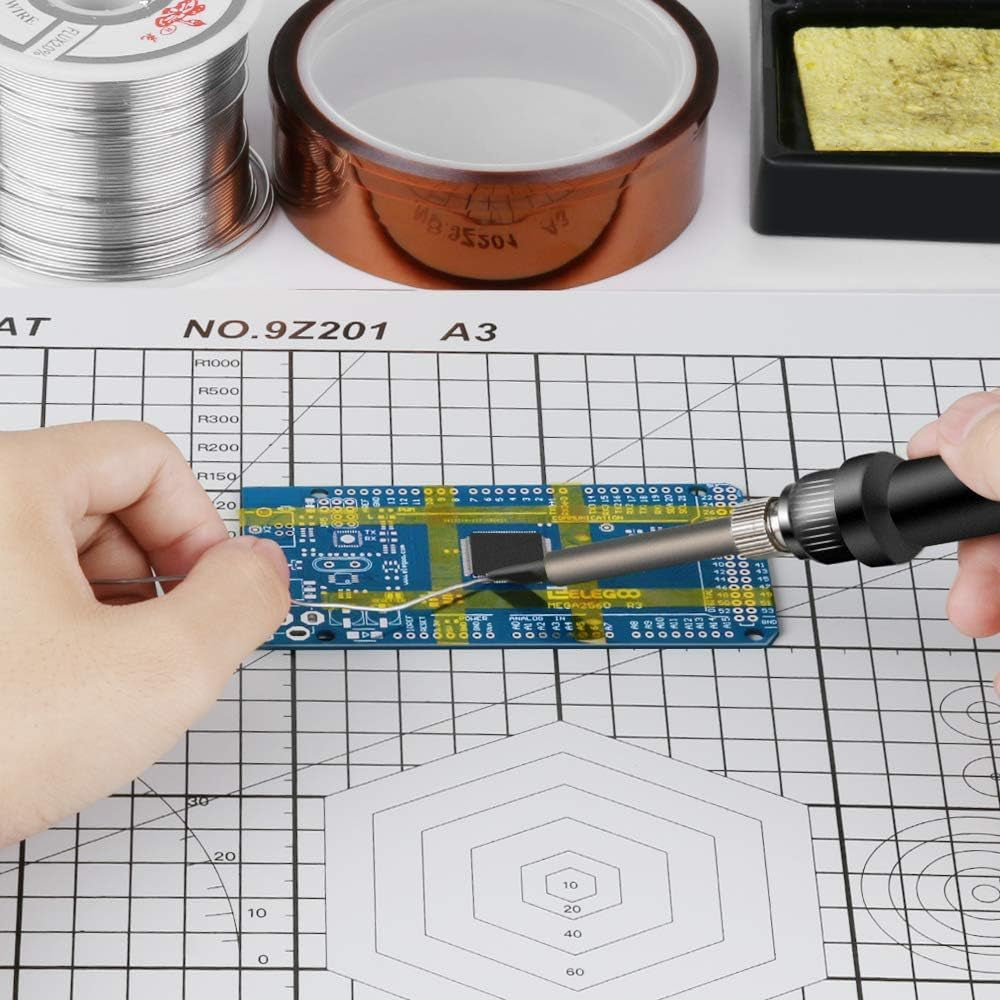

- Mask, Insulate & Organize Projects: Shield nearby PCB components during soldering or hot-air rework, cover solder joints, separate conductive surfaces, secure lightweight wire runs, mask selected areas during 3D-printer maintenance, or protect details during powder coating and heat-transfer work

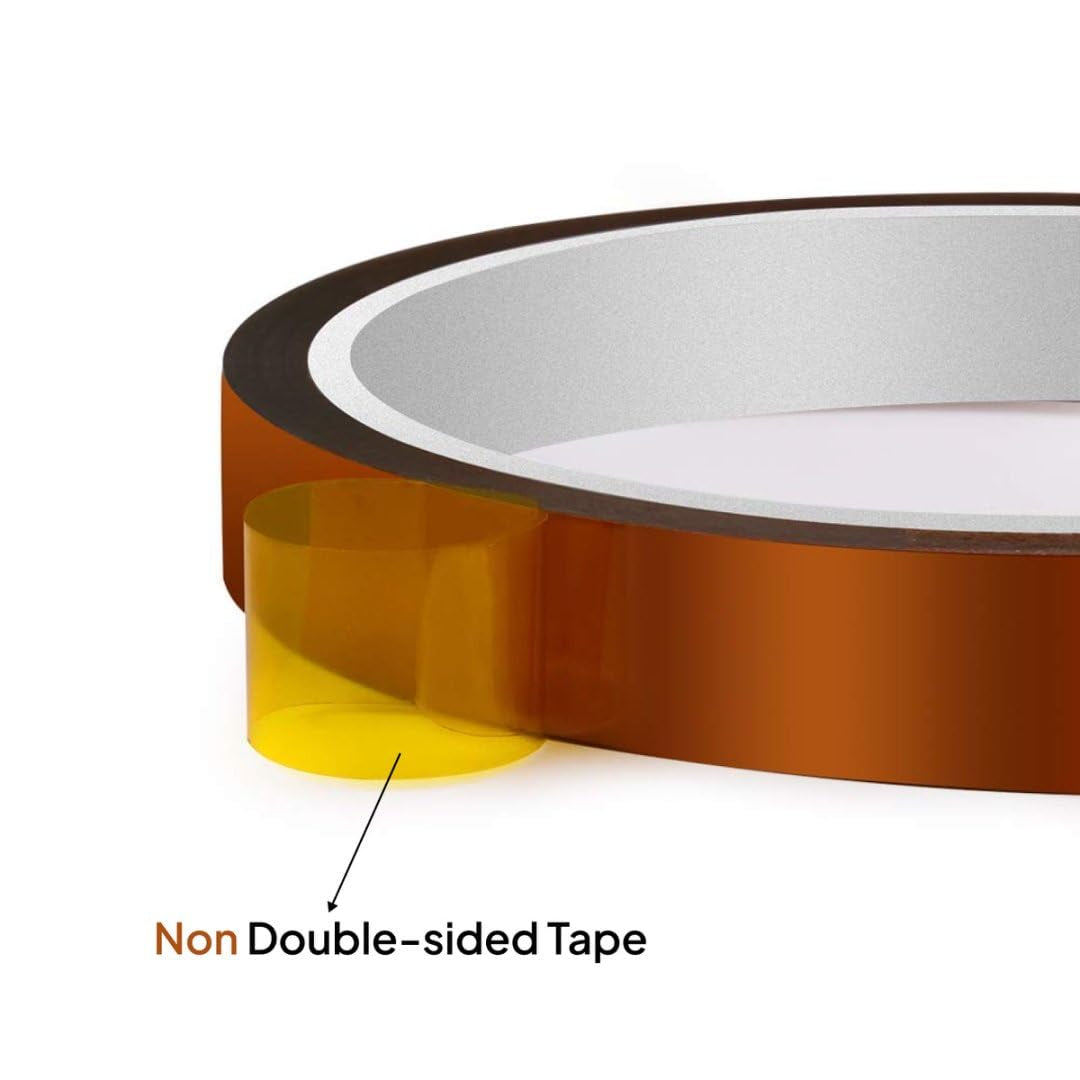

- Know What This Tape Is Not: This is single-sided polyimide film tape, not double-sided thermal interface tape, thermal paste, PTFE thread tape, polyester film tape, foil tape or structural mounting adhesive; do not use it as a permanent load-bearing fastener
