45+5Uf 45/5MFD ±6% 370V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

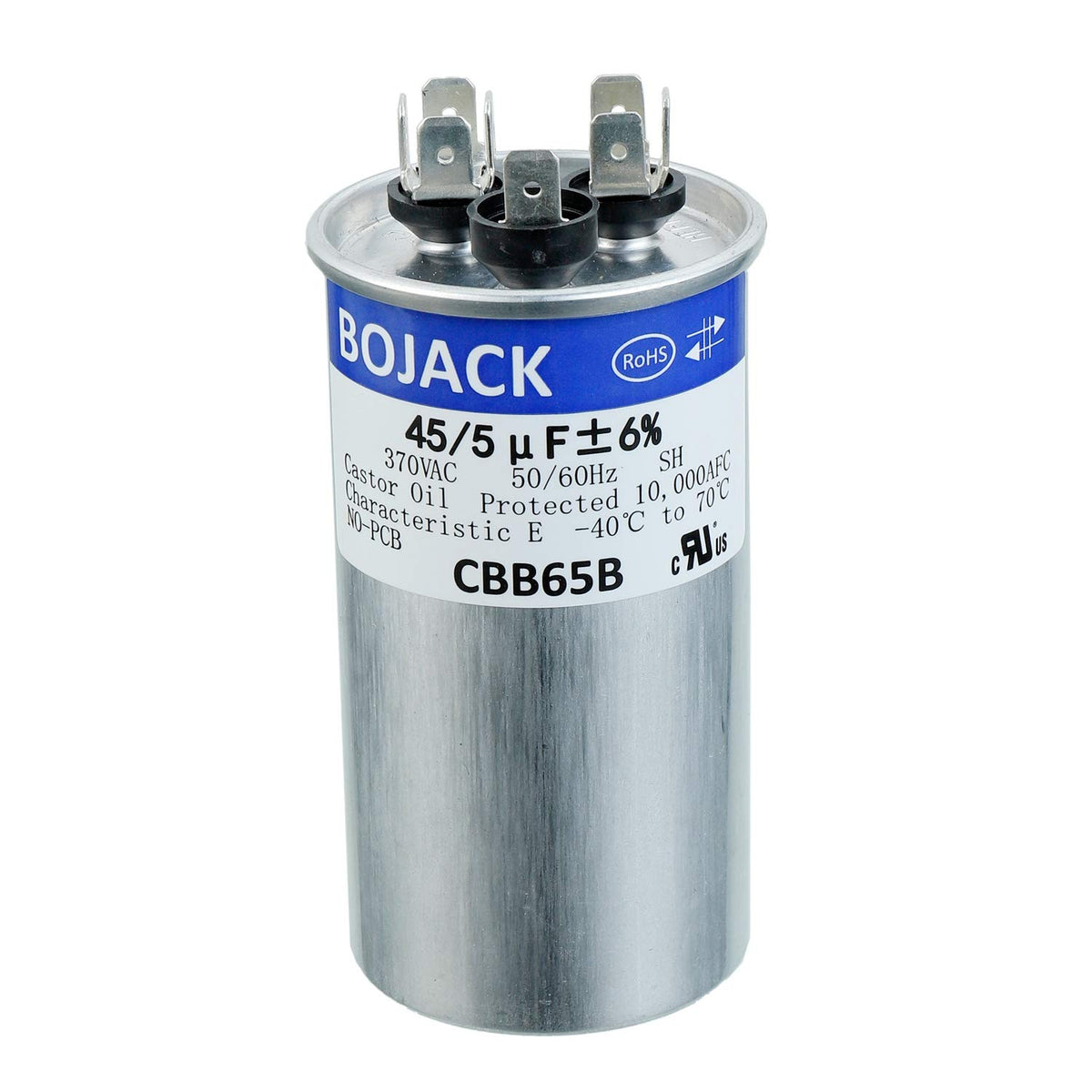

BOJACK Dual run circular start capacitor

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor,
"Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 45+5uf
Tolerance: ±6%
Rated voltage: 370V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC

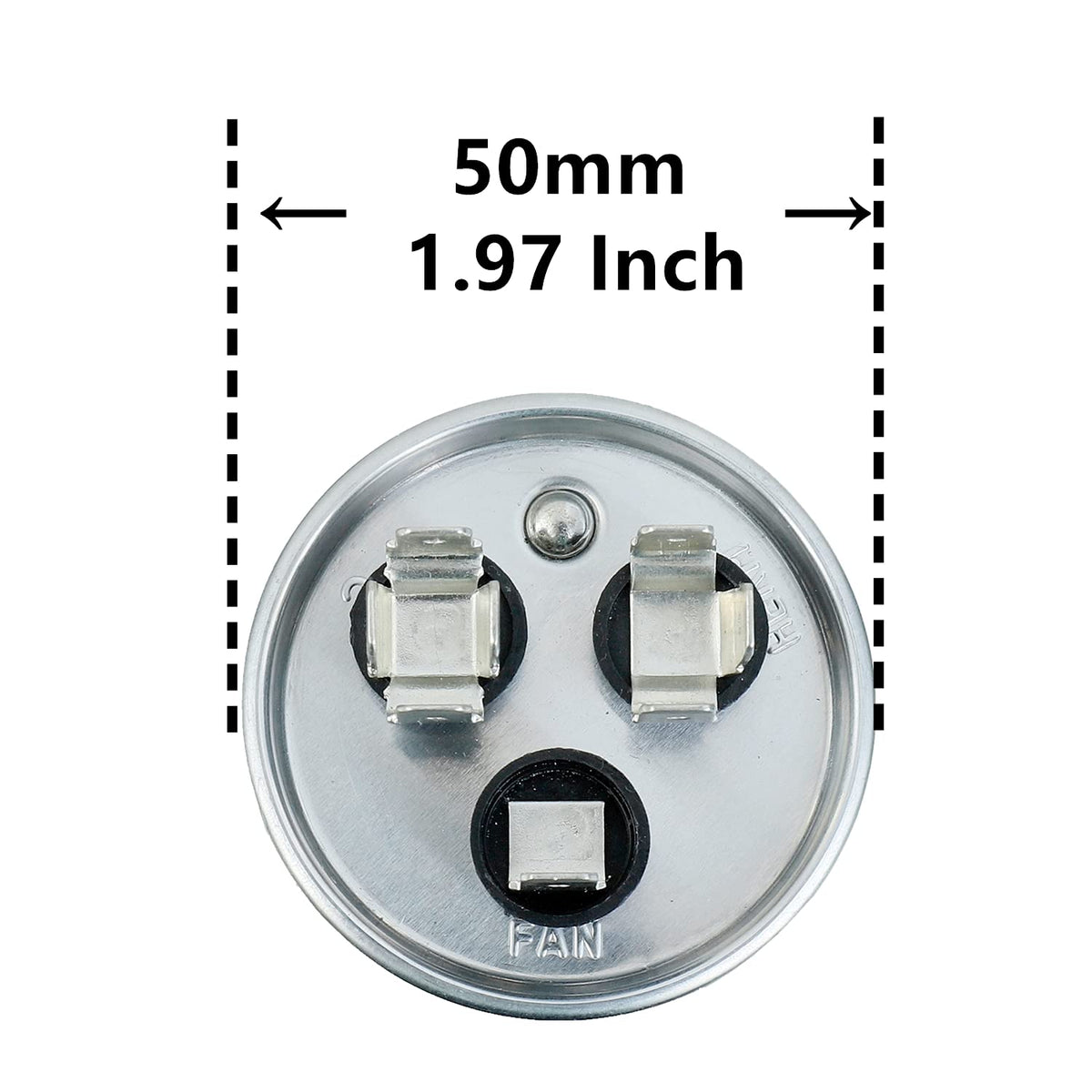

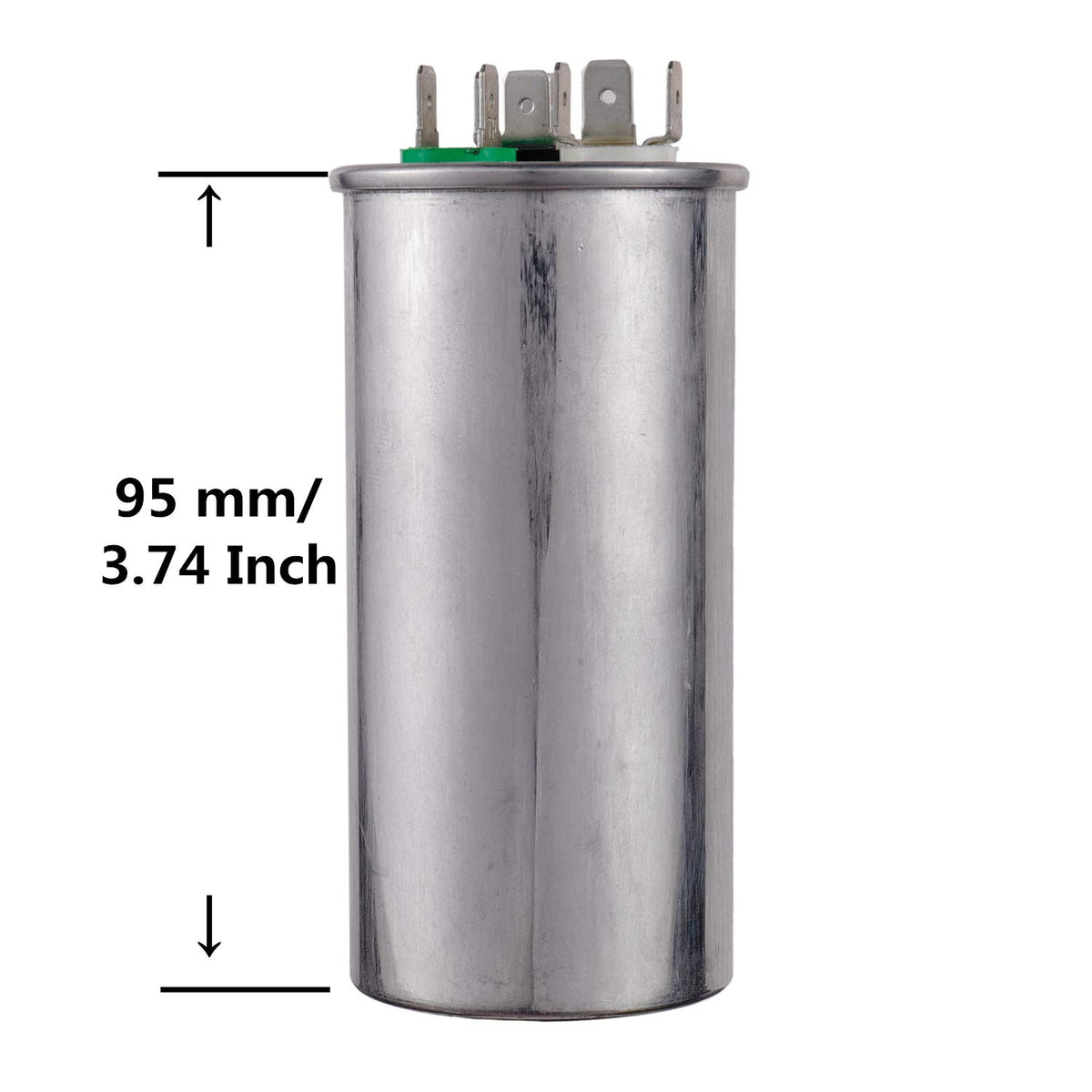

Capacitor dimension: Diameter(50 mm/1.97 inch) Height(95 mm/3.74 inch)
Operating temperature: -40 ℃ to +70℃
This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.
It is small in size, lightweight, heat resisting and anti-explosion.
