Solar Wire Crimper Tool Kit: A Practical Guide to MC4 Solar Connections

What Is a Solar Wire Crimper Tool Kit?

Installing, extending, or maintaining solar panel wiring often requires more than simply connecting two cables. Creating secure solar cable connections requires the correct crimping tools, compatible connectors, and properly prepared wire.

A solar wire crimper tool kit brings these essential tools together in one place, making it useful for DIY solar projects, RV and boat solar systems, residential installations, and routine photovoltaic cable maintenance.

A typical kit may include a solar crimping tool, wire stripper, connector wrenches, and MC4-style solar connectors. Having these components together can make it easier to create custom solar cables or replace damaged connectors without purchasing each tool separately.

What Does a Solar Crimping Tool Do?

A solar crimping tool is designed to securely crimp metal contacts onto solar cable.

The wire is first stripped to expose the conductor. A compatible metal contact is then positioned around the conductor and compressed using the appropriate crimping die.

A properly made crimp creates a strong mechanical connection between the cable and contact before the contact is inserted into its connector housing.

Using a purpose-built crimper is important because solar connectors and cable sizes require consistent compression. Improvised tools may not produce the same controlled crimp.

Understanding 14–10 AWG Solar Wire

AWG stands for American Wire Gauge, a system commonly used to describe electrical wire sizes.

The Lingchievo Solar Wire Crimper Tool Kit is designed for 14–10 AWG wire, covering a useful range for many solar wiring applications.

The included connector system is suitable for 2.5 mm², 4 mm², and 6 mm² cables, giving the kit flexibility for different photovoltaic wiring projects.

Before creating any connection, always verify that the cable, connector, contact, and crimping die are compatible with one another and appropriate for the electrical system being worked on.

What Are MC4 Solar Connectors?

MC4-style connectors are commonly associated with photovoltaic systems and are designed to create secure connections between solar cables and system components.

They are frequently encountered when connecting solar panels, creating extension cables, replacing damaged cable ends, or routing photovoltaic wiring through an installation.

Because solar equipment is often installed outdoors, connector construction and environmental protection are particularly important.

The connectors included with this kit feature an IP67 rating and rugged housings designed for outdoor solar and wind-power applications when correctly assembled.

An IP67 rating indicates protection against dust ingress and temporary water immersion under defined test conditions. It does not eliminate the need for correct assembly and installation.

Why Are Solar Connector Wrenches Useful?

Solar connectors are designed to remain securely connected during normal operation. That is useful once a system is assembled, but it can make installation and maintenance more difficult without the appropriate tools.

This kit includes two spanner wrenches designed to assist with connecting and disconnecting compatible solar connector pairs.

Having dedicated connector wrenches can make cable assembly and maintenance more convenient while reducing the temptation to use unsuitable tools.

What Is Included in the Solar Crimping Tool Kit?

The Lingchievo kit combines the main tools and components needed for many common solar cable projects.

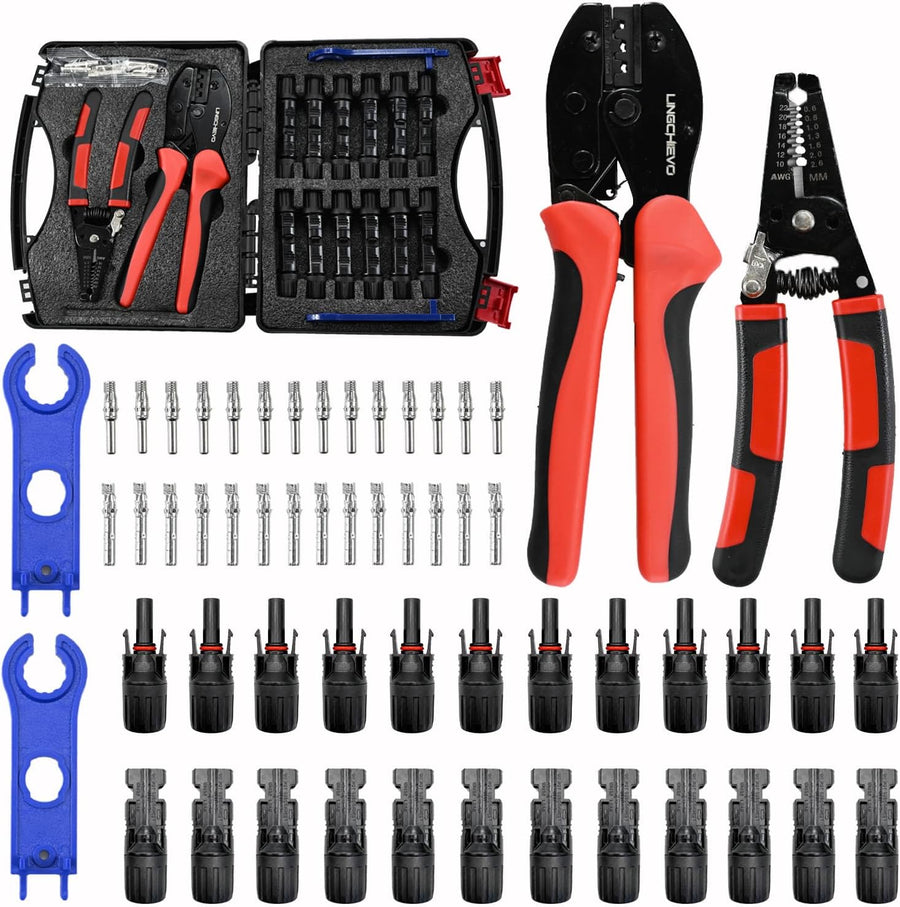

The kit includes a wire crimper, wire stripper, two spanner wrenches, and 12 pairs of solar panel connectors.

The crimper is constructed from high-carbon steel and is designed to produce consistent crimps for compatible 14–10 AWG wires.

Because the components are supplied together in an organized kit, the tools can also be stored and transported more conveniently between projects.

What Can You Use a Solar Crimping Kit For?

A solar crimper kit can be useful for more than a new residential solar installation.

For example, it can be used when building compatible custom solar extension cables, replacing damaged photovoltaic cable connectors, performing wiring maintenance, or working on solar installations for RVs and boats.

It may also be useful for people who regularly work with small off-grid solar projects and want the primary cable preparation tools stored together.

The exact tools and connectors required will always depend on the components and specifications of the particular system.

Solar Crimping Tool for RV and Off-Grid Projects

Portable and off-grid solar installations frequently require cables to be routed according to the dimensions and layout of a particular vehicle, boat, cabin, or other installation.

Having a crimper, stripper, connector wrenches, and compatible connectors available can be particularly useful when a standard pre-made cable does not match the required configuration.

A compact kit also makes it easier to keep the necessary tools together for future maintenance or repairs.

How to Choose a Solar Crimping Tool Kit

Before buying a solar crimper kit, check its specifications against the wiring and connectors you intend to use.

Pay particular attention to the supported wire gauge, compatible cable sizes, connector specifications, crimper construction, included accessories, and whether replacement connectors can be obtained when needed.

For outdoor installations, the environmental rating of compatible connectors is another important consideration.

It is also worth considering the complete contents of the kit. A package containing the crimper, stripper, connector tools, and multiple connector pairs can be more convenient than sourcing each component individually.

Lingchievo Solar Wire Crimper Tool Kit

For people looking for an all-in-one option, the Lingchievo Solar Wire Crimper Tool Kit combines the essential components for many common photovoltaic cable projects.

The kit supports 14–10 AWG wire and includes a high-carbon steel crimper, wire stripper, two spanner wrenches, and 12 pairs of solar connectors.

Its included IP67-rated connectors accommodate 2.5 mm², 4 mm², and 6 mm² cables and are designed for properly assembled outdoor solar and wind-power connections.

The lightweight, organized format also makes the kit convenient to store between installations or carry to different projects.

Solar Wiring Safety

Solar wiring should always be treated as electrical work.

Solar panels can generate electricity whenever they are exposed to light, and photovoltaic systems may involve hazardous voltage and current. Follow the instructions and specifications supplied by the manufacturers of the panels, connectors, cables, inverter, charge controller, and other system components.

Do not assume that connectors are compatible simply because they appear similar. Use appropriately rated components, verify polarity and connections, and follow applicable electrical requirements.

If you are not qualified or comfortable performing electrical work, use a qualified solar installer or electrician.

Final Thoughts

A good solar wire crimper kit can make cable preparation, connector installation, and routine photovoltaic wiring work more organized and convenient.

For DIY solar projects, RV and boat installations, residential solar maintenance, or custom cable assembly, having the appropriate crimper, stripper, connector wrenches, and compatible connectors together can eliminate the need to collect individual tools for each job.

The Lingchievo Solar Wire Crimper Tool Kit packages those essentials into one portable set, with support for 14–10 AWG wire and 12 pairs of solar connectors for a range of common solar wiring projects.
